Direct Manufacturer•CE & ISO Certified
Precision Veneer Glue Spreader Machines
Single & double side glue spreader machines for plywood and veneer production. Even glue coating, adjustable speed, matched with automatic feeding lines.
Single & Double Side Precision Glue Spreaders
Uniform adhesive distribution prevents dry spots, blisters, and resin waste. Our double-sided glue spreaders feature micro-adjustable metering dials, wear-resistant synthetic rubber rollers, and stainless steel glue troughs compatible with UF, PF, and melamine resins.
Glue Spreader Machines Models & Specifications
9 Models Available
Glue Spreader Machines
Veneer Glue Spreader
Coating roller Diameter x Length:Φ430*1500 mm / Φ430*1800 mm / Φ430*2200 mm / Φ430*2700 mm / Φ430*3000 mm / Φ430*3300 mm
Squeeze roller Diameter x Length:Φ292*1500 mm / Φ292*1800 mm / Φ292*2200 mm / Φ292*2700 mm / Φ292*3000 mm / Φ292*3300 mm
Coating roller speed:59.5 m/min
Main drive motor:5.5 kw
Glue Spreader Machines
Glue Spreader Machines
Glue Spreader Machines
Plywood Glue Spreader
Coating roller Diameter x Length:Φ430x2700 mm / Φ430x1500 mm
Squeeze roller Diameter x Length:Φ292x2700 mm / Φ292x1500 mm
Max. working thickness:30 mm 30 mm
Coating roller speed:30/ 45 m/min / 30/ 45 m/min
Glue Spreader Machines
Glue Spreader
Coating roller Diameter x Length:φ430x2700 mm / φ430x1500 mm
Squeeze roller Diameter x Length:φ292x2700 mm / φ292x1500 mm
Max. working thickness:30 mm 30 mm
Coating roller speed:30/ 45 m/min / 30/ 45 m/min
Glue Spreader Machines
Plywood Glue Spreader MH61
Spreader roller diameter:mm / 430 / 430
Push roller diameter:mm / 292 / 292
Roller length:mm / 2700 / 1500
Main drive motor:kw / 4/5.5 / 4/5.5
Glue Spreader Machines
Glue Spreader MH62
Spreader roller diameter:mm / 430 / 430
Push roller diameter:mm / 292 / 292
Roller length:mm / 2700 / 1500
Main motor power:kw / 4/5.5 / 4/5.5
Glue Spreader Machines

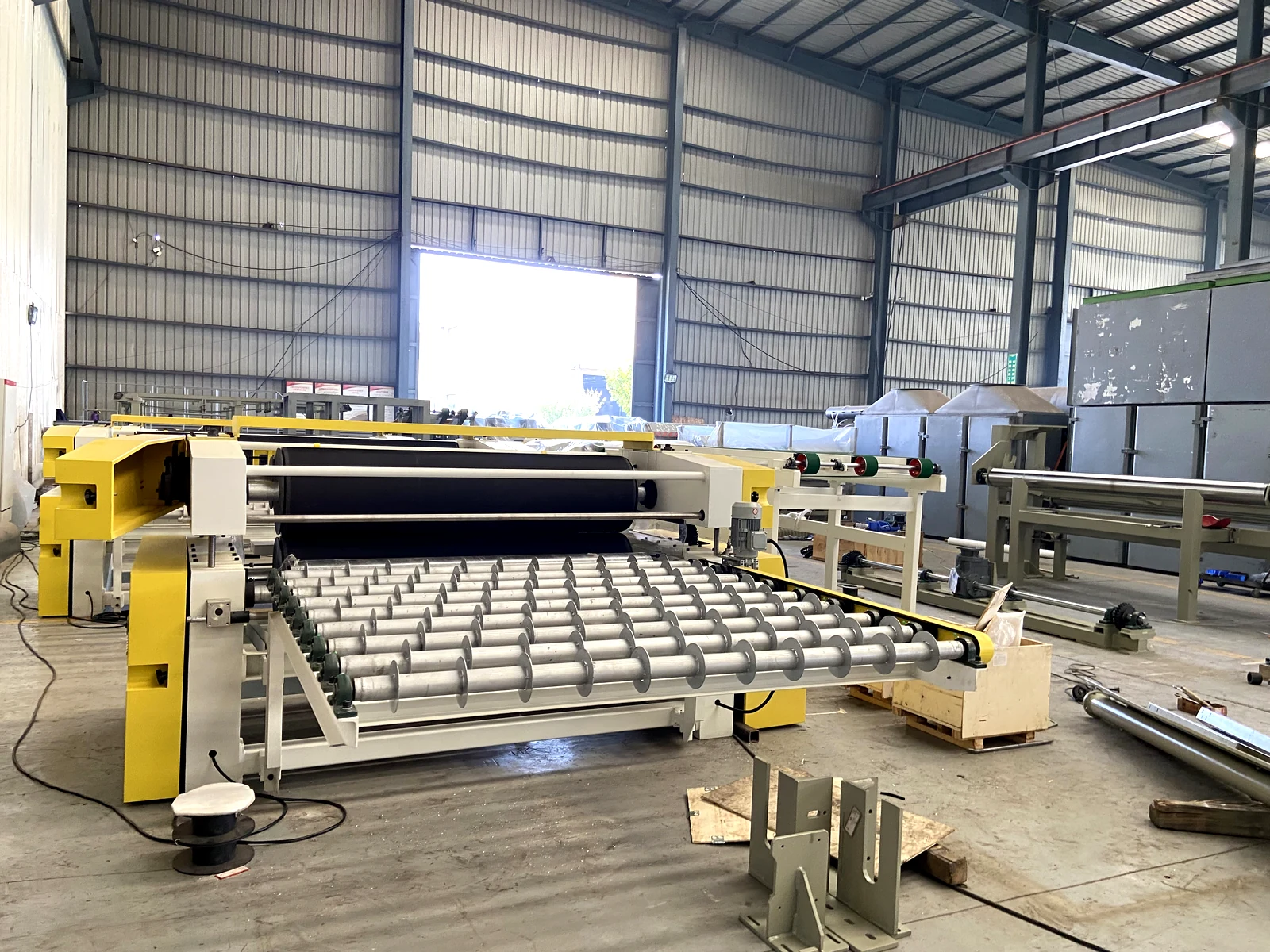

MH61-2700 Precision Double-Side Veneer Glue Spreader Machine 4x8 ft
Model:MH61-2700
Working Roller Size:Ø 430 x 2700 mm (8ft)
Doctor Roller Size:Ø 292 x 2700 mm
Spreading Speed:59.5 m/min
Glue Spreader Machines

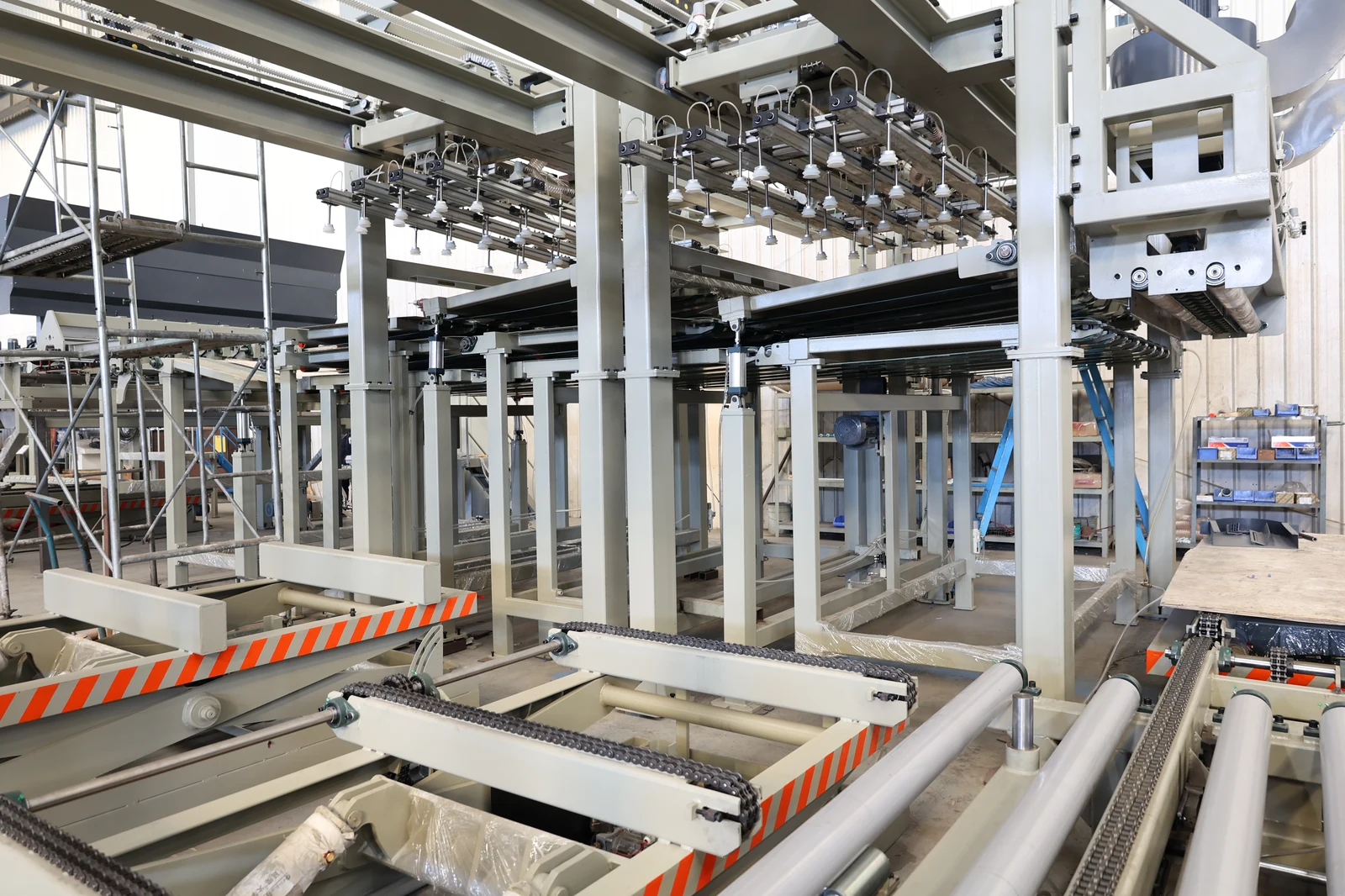

Automatic Plywood Curtain Glue Coating Line & Glue Applicator
Working Width:1300 mm / 1500 mm
Feed Conveyor Speed:60 - 120 m/min (Inverter Drive)
Coating Uniformity:±3 g/m²
Glue Pump:Frequency Inverter Controlled Gear Pump
