Plywood Edge Trimming Saws & DD Saw Lines
Automatic double side edge trimming saws for plywood. Cut 4x8ft boards with high precision, PLC control, up to 4000 sheets per shift.
Automatic Double Side Edge Trimming Saws (DD Saws)
Achieve razor-sharp edges and exact diagonal squareness on pressed plywood panels. Our DD saw lines feature infrared positioning, automatic 90-degree turning tables, and integrated dust collection for up to 4,000 boards per shift.
Plywood Edge Trimming Saws Models & Specifications
10 Models Available
Plywood Edge Trimming Saws
Plywood Edge Trim Saw
Lengthways saw side size:915-1220 mm
Widthways saw side size:1830-2440 mm
Board thickness:2.4-30 mm
Saw diameter and quantity:Γ300 x4 mm
Plywood Edge Trimming Saws
Plywood Edge Trimming Saws
Plywood Trimming Saw
Lengthways edge sawing size:915-1220 mm
Widthways edge sawing size:1830x2440 mm
Saw blade diameter:Ξ¦ 305 mm
Saw blade speed:6900 rpm
Plywood Edge Trimming Saws
Plywood Edge Trimming Saws
Plywood Edge Trimming Saws
Plywood Edge Trimming Saws
Plywood Cutting Machine
Lengthways edge sawing size:915~1220 mm
Widthwasy edge sawing size:1830~2440 mm
Saw blade diameter:Ο305 mm
Saw blade speed:6900 rpm
Plywood Edge Trimming Saws
Plywood Double Sizer ZHJ4X8A
Edge sawing size:mm / 915~1220 / 1830~2440
Cutting thickness:mm / 30 / 30
Saw blade diameter:mm / 300 / 300
Blade speed:rpm / 6900 / 6900
Plywood Edge Trimming Saws

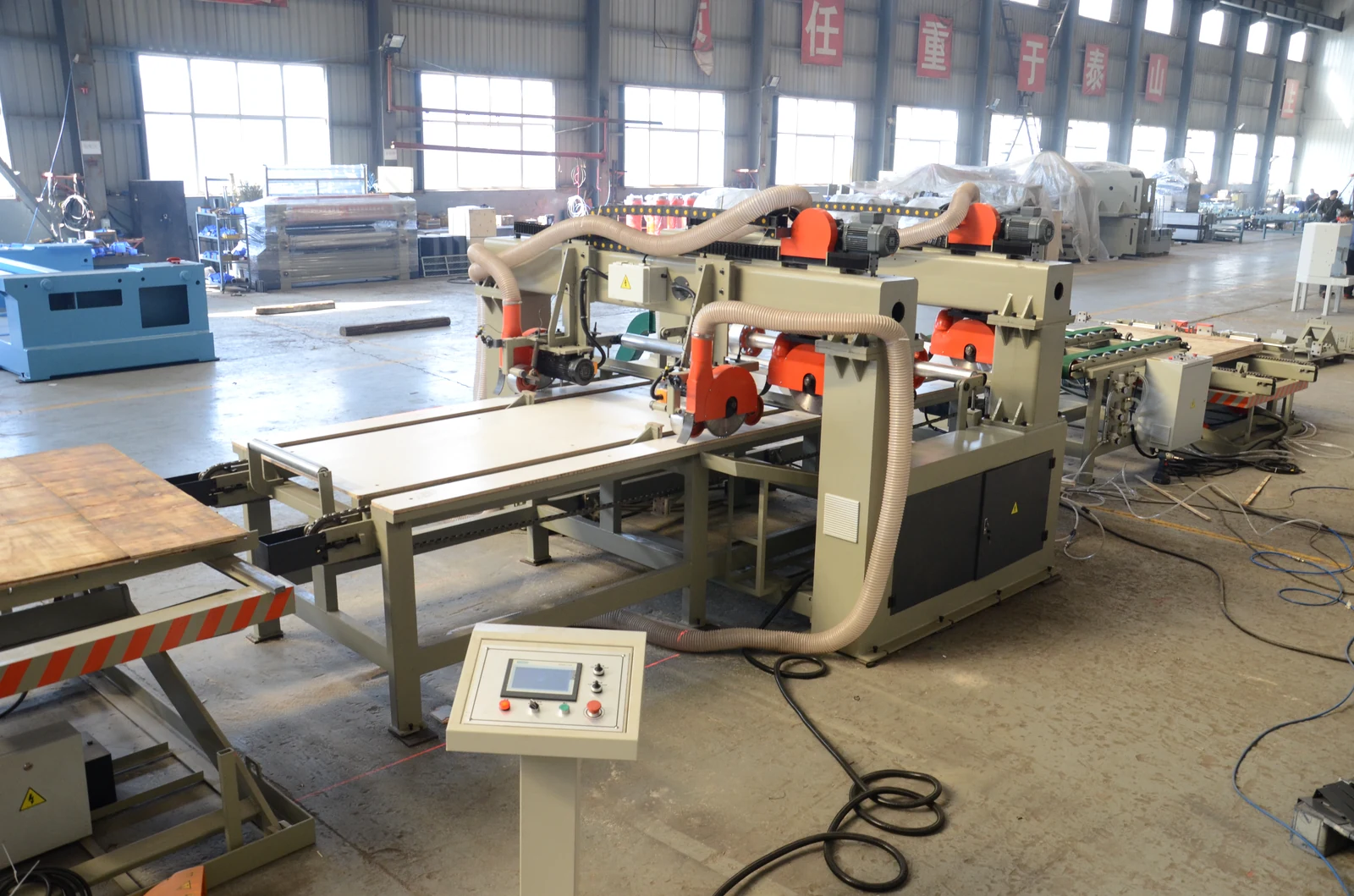

HZH2700 Automatic Double-Side Sizing Saw Line 4x8 ft for Plywood
Model:HZH2700
Board Size:1220 x 2440 mm (4x8 ft)
Cutting Thickness:0 - 60 mm
Main Saw Blade Diameter:Γ 350 mm
Plywood Edge Trimming Saws

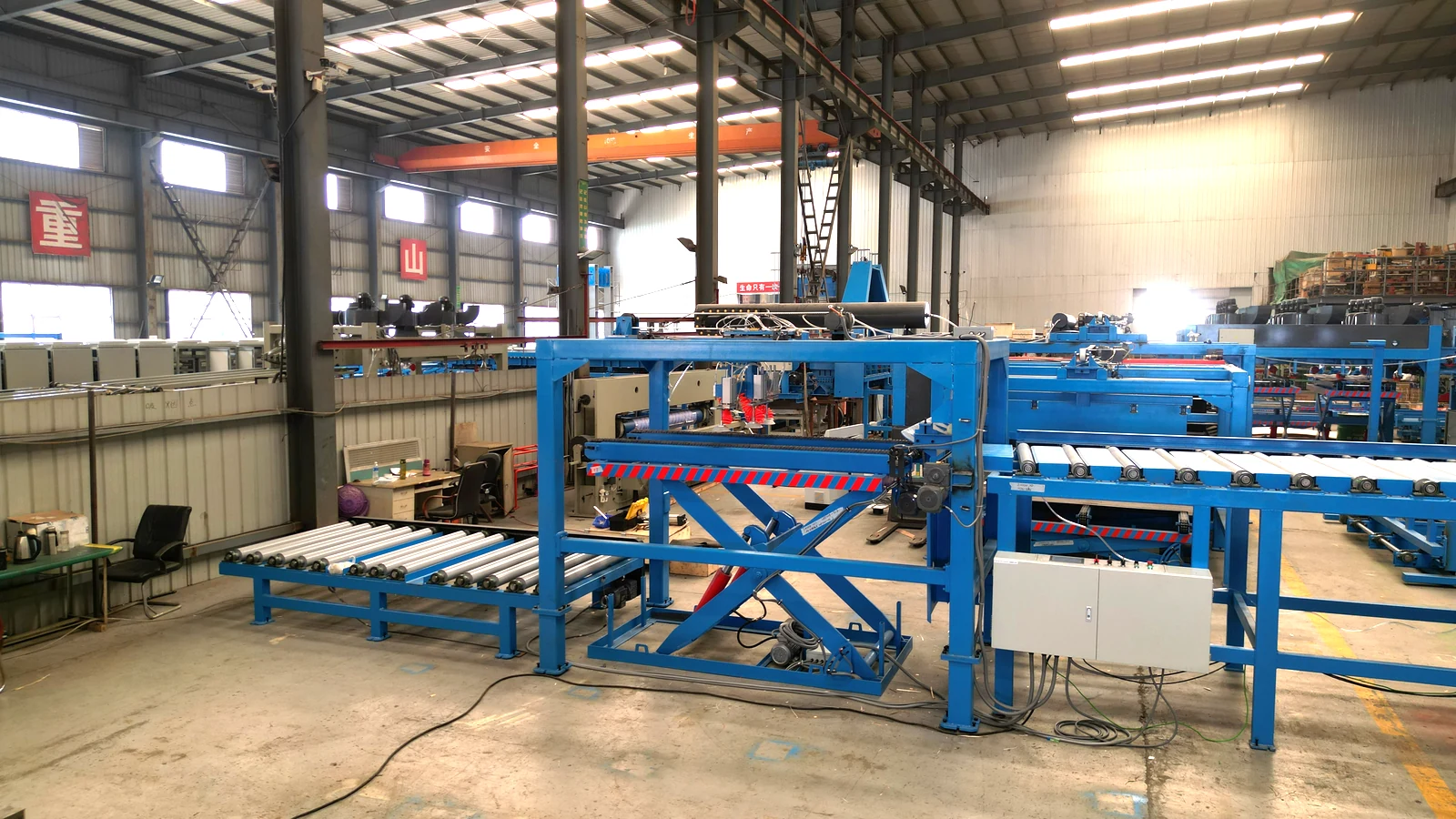

HDCJ-8 High-Speed Continuous DD Sizing Saw Line for Plywood
Model:HDCJ-8
Trimming Width Range:1800 - 2550 mm
Cutting Thickness:2 - 35 mm
Continuous Feed Speed:25 - 100 m/min (Stepless)
