Auxiliary Machines & Workshop Equipment for Plywood Production
Auxiliary equipment for plywood plants: glue mixing machines, veneer knife grinders, veneer stackers, dust collectors and lifting platforms.
Essential Plywood Plant Auxiliary Equipment
Maximize overall plant uptime with Hanvy precision auxiliary machinery: stainless steel resin glue mixing stations, electromagnetic knife grinders for razor-sharp peeling knives, automated vacuum veneer stackers, and scissor lift tables.
Auxiliary Machines for Plywood Production Models & Specifications
37 Models Available
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Knife Grinder
Grinding wheel:White fused alumina / White fused alumina/Resin / White fused alumina/Resin
Max.Grinding length:1500 mm / 3000 mm / 3500 mm
Work table width:180 mm / 180 mm / 180 mm
Work table angle range:Β±45 Β° / Β±45 Β° / Β±45 Β°
Auxiliary Machines for Plywood Production
Automatic Knife Grinder
Grinding wheel:White fused alumina / White fused alumina/Resin / White fused alumina/Resin
Max.Grinding length:1500 mm / 3000 mm / 3500 mm
Work table width:180 mm / 180 mm / 180 mm
Work table angle range:Β±45 Β° / Β±45 Β° / Β±45 Β°
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Knife Sharpener
Grinding wheel:White fused alumina / White fused alumina/Resin / White fused alumina/Resin
Max.Grinding length:1500 mm / 3000 mm / 3500 mm
Work table width:180 mm / 180 mm / 180 mm
Work table angle range:Β±45 Β° / Β±45 Β° / Β±45 Β°
Auxiliary Machines for Plywood Production
Automatic Turn Over Machine
Capacity:T / 4 / 4
Opening:mm / 800-1200 / 650-1200
Turn over angle:degree / 0-180 / 0-180
Rotate angle:degree / 0-180
Auxiliary Machines for Plywood Production
Plywood Turn Over Machine
Capacity:T / 4 / 4
Opening:mm / 800-1200 / 650-1200
Turn over angle:degree / 0-180 / 0-180
Rotate angle:degree / 0-180
Auxiliary Machines for Plywood Production
Veneer Patching Machine
Mending speed:3-5 sec/time
Veneer thickness:0.8~3.0 or2.0~8.0 optional mm
Diameter of cylinder:50 mm
Weight:1500 kg
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Four Side Moulder
Working width:20-230 mm 20-230 mm
Working thickness:6-125 mm 6-125 mm
Spindles:7 pcs 6 pcs
Spindle rotation speed:6000 rpm 6000 rpm
Auxiliary Machines for Plywood Production
Automatic Veneer Patcher
Mending thickness:0.8-3 mm
Mending size:60x100 mm
Throat depth:1400mm
Mending speed:3-5 sec/time
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Core Veneer Composer
Veneer thickness:1.2-3.5 mm
Veneer width:1350 mm
Knife Length:1400 mm
Working capacity:250 pcs/h
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Edge bander BJF115
Functions:BJF115M / BJF115
Gluing:Y / Y
Automatic End Cut:Y / Manual control
Fine trimming:Y / Y
Auxiliary Machines for Plywood Production
Combination Woodworking Machine MQ443A
Max. planing width:300 mm
Max. planing depth:3 mm
Planing thickness:6-125 mm
Min. planing length:130 mm
Auxiliary Machines for Plywood Production
Edge Banding Machine MF505B
The thickness of edge handing tape:0.4-3 (mm)
The width of edge handing tape:10-55 (mm)
Feeding speed:15 (m/min)
Feeding motor:2.2 (Kw)
Auxiliary Machines for Plywood Production
ML393A versatile wood machine
Max. planing width:300 mm
Max. planing depth:3 mm
Planing thickness:6-125 mm
Min. planing length:130 mm
Auxiliary Machines for Plywood Production
Multifunction Woodworking Machine ML410
Thicknessing planer:2.2kw / Moulder / 2.2kw
Max planing width:400mm / Spindle diameter / 30mm
Work piece min.length:130mm / Max.tool diameter / 180mm
Max.planing capacity:3mm / Cutter block length / 85mm
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Combined Planer and Thicknesser MP310
Motor power::230V~,50Hz,2200W or / 230V~,50Hz,3000W or
Cutter head diameter(mm):70 75
Cutter(mm):260x18.5x1(standard) or 260x25x3(optional) / 310x19x1 or 310x25x3
Rotation speed of cutter head(rpm):4800 4000
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
4-Side Moulder HL4006
Working width (mm):20-230 20-230
Max. height finished stock (mm):125 125
spindles (pcs):6 6
spindle speed-belted (rpm):6000 6000
Auxiliary Machines for Plywood Production
Auxiliary Machines for Plywood Production
Four Side Planer HL3005
Working width (mm):20-230
Max. height finished stock (mm):125
spindles (pcs):5
spindle speed-belted (rpm):6000
Auxiliary Machines for Plywood Production
Laminated Hot Press for Door MH3848
Press platen dimension:(mm) / 1300*2500*42 / 1300*2500*42 / 1300*2500*42
Press Platen Option:(mm) / 1300*2500*42 / 1300*2500*42 / 1300*2500*42
Max.total thrust:(t) / 120 / 120 / 120
Max.platen opening:(mm) / 380 / 380 / 380
Auxiliary Machines for Plywood Production
Cold Press MH3248
Press platen dimension:(mm) / 1250*2500 / 1250*2500
Max.pressure:(t) / 50 / 80
Max.platen opening:(mm) / 1000/1300/1500 / 1000/1200
Oil cylinder:(Mpa) / 2pcs*90mm / 3pcs*125mm
Auxiliary Machines for Plywood Production
Log Lathe TEREM8000G
Voltage:(V) / 380 / 380
Max log length:(mm) / 8000 / 10000
Min log length:(mm) / 300 / 300
Max log diameter:(mm) / 500 / 500
Auxiliary Machines for Plywood Production
Log Trimming Saw HT320
The diameter of log:120-320 (mm)
The maximum cross-section beams:300 x 340 (mm)
Drive power saws:11 (kw)
Drive power saw unit:0, 18 (kw)
Auxiliary Machines for Plywood Production
Knife Sharpening Machine HMD3000
Grinding wheel:White fused alumina / Resin / White fused alumina / Resin / White fused alumina / Resin
Max.Grinding length:1500 mm / 1100 mm / 3000 mm / 3000 mm / 3500 mm / 3500 mm
Work table width:180 mm / 180 mm / 180 mm / 180 mm / 180 mm / 180 mm
Work table angle range:Β±45 Β° / Β±45 Β° / Β±45 Β° / Β±45 Β° / Β±45 Β° / Β±45 Β°
Auxiliary Machines for Plywood Production
Log Notcher BO340
Notcher diameter:(mm) / 150-340 / 150-340
Milling motor:(kw) / 3 / 5.5
Carriage motow:(kw) / 0.18 / 0.18
Stroke:(mm) / 450 / 850
Auxiliary Machines for Plywood Production
Knife Grinder HMD1500
Style:Standard
Guide Rail:Steel Plate
Max. grinding length:1500(mm)
Rotating speed of grinding head:1400(r/min)
Auxiliary Machines for Plywood Production
Log Mortiser BC-1
Drive power cutters:3 (kw)
Drive power cutter carriage:0.18 (kw)
Rotational speed cutter:3000 (rpm)
Overall size:900*900*1200 (mm)
Auxiliary Machines for Plywood Production

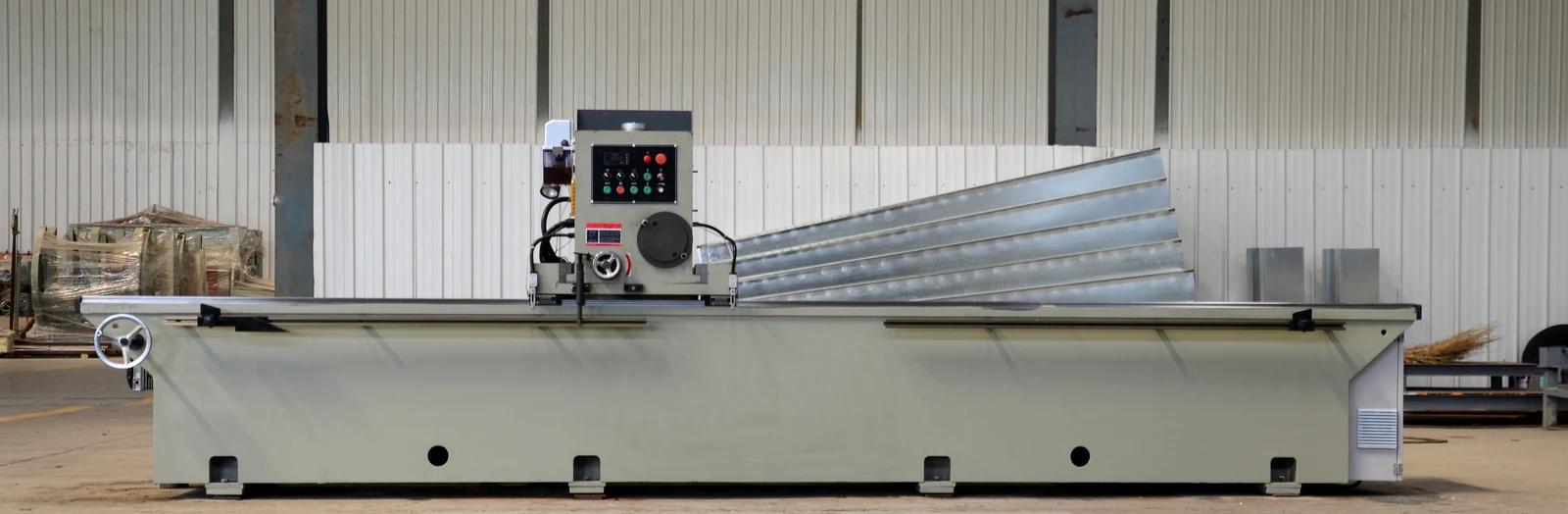

HMD3000C CNC Veneer Peeling Knife Grinding Machine
Model:HMD3000C
Max Grinding Length:3000 mm (10 ft)
Worktable Width:180 mm
Worktable Tilting Range:Β±45Β°
Auxiliary Machines for Plywood Production

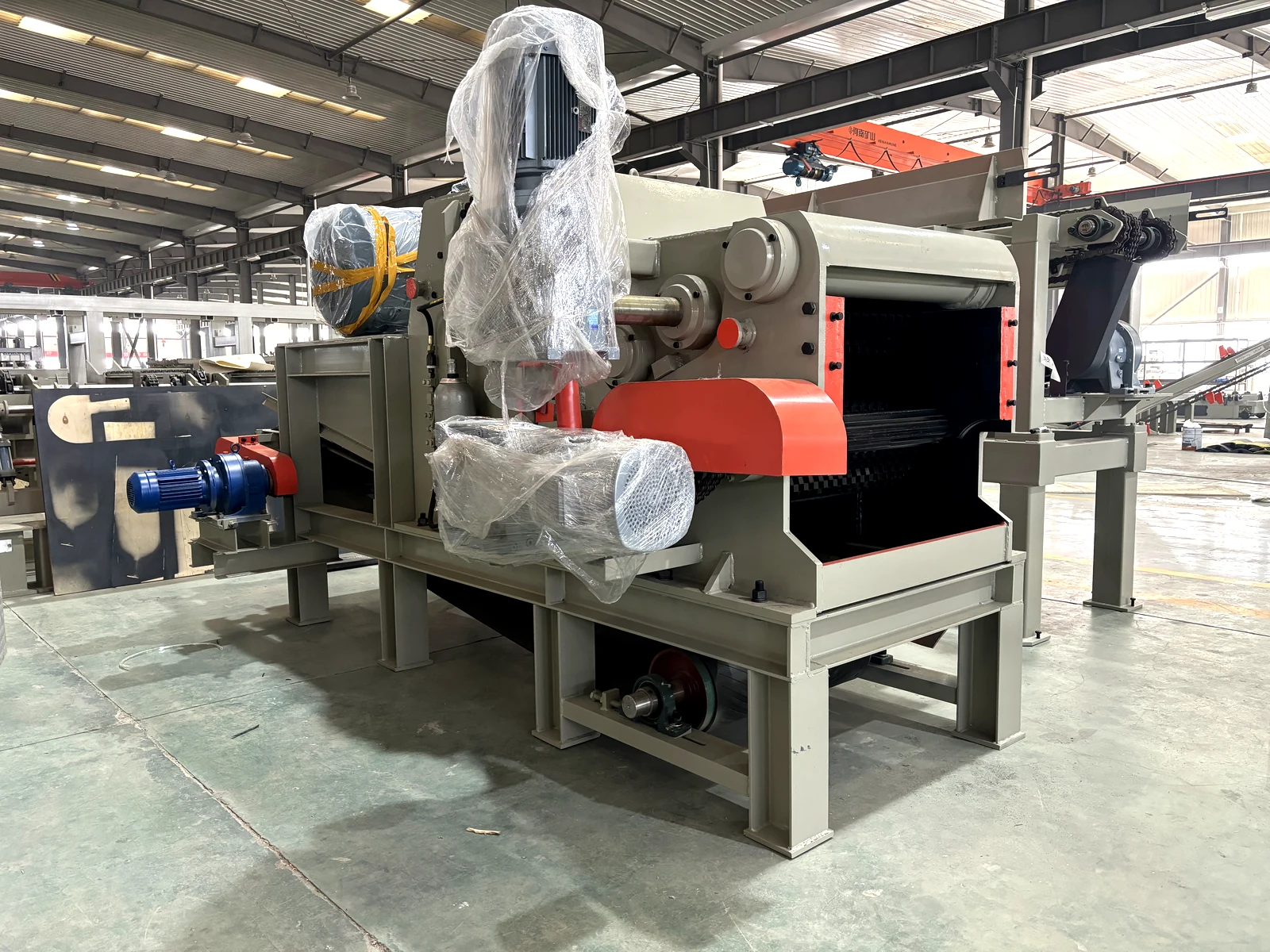

BX218 Industrial Drum Wood Chipper Machine for Biomass & Particleboard
Tank Capacity:1000 L / 2000 L (Dual Tanks)
Material Construction:SUS304 Heavy Stainless Steel
Agitator Drive:7.5 kW Motor with Frequency Inverter
Weighing Accuracy:Β±0.1 kg (High-Precision Load Cells)
