Roller Type Veneer Dryer

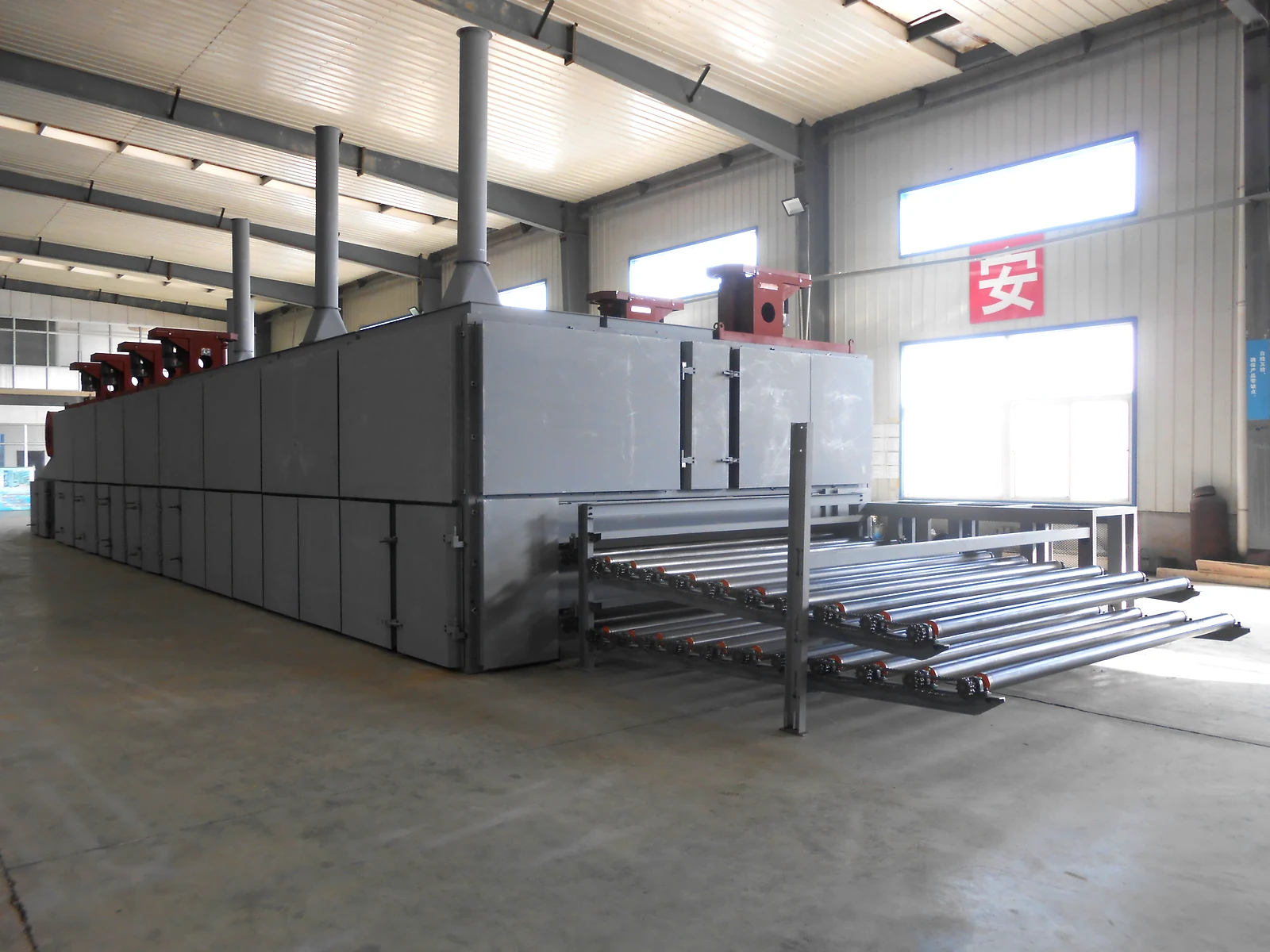

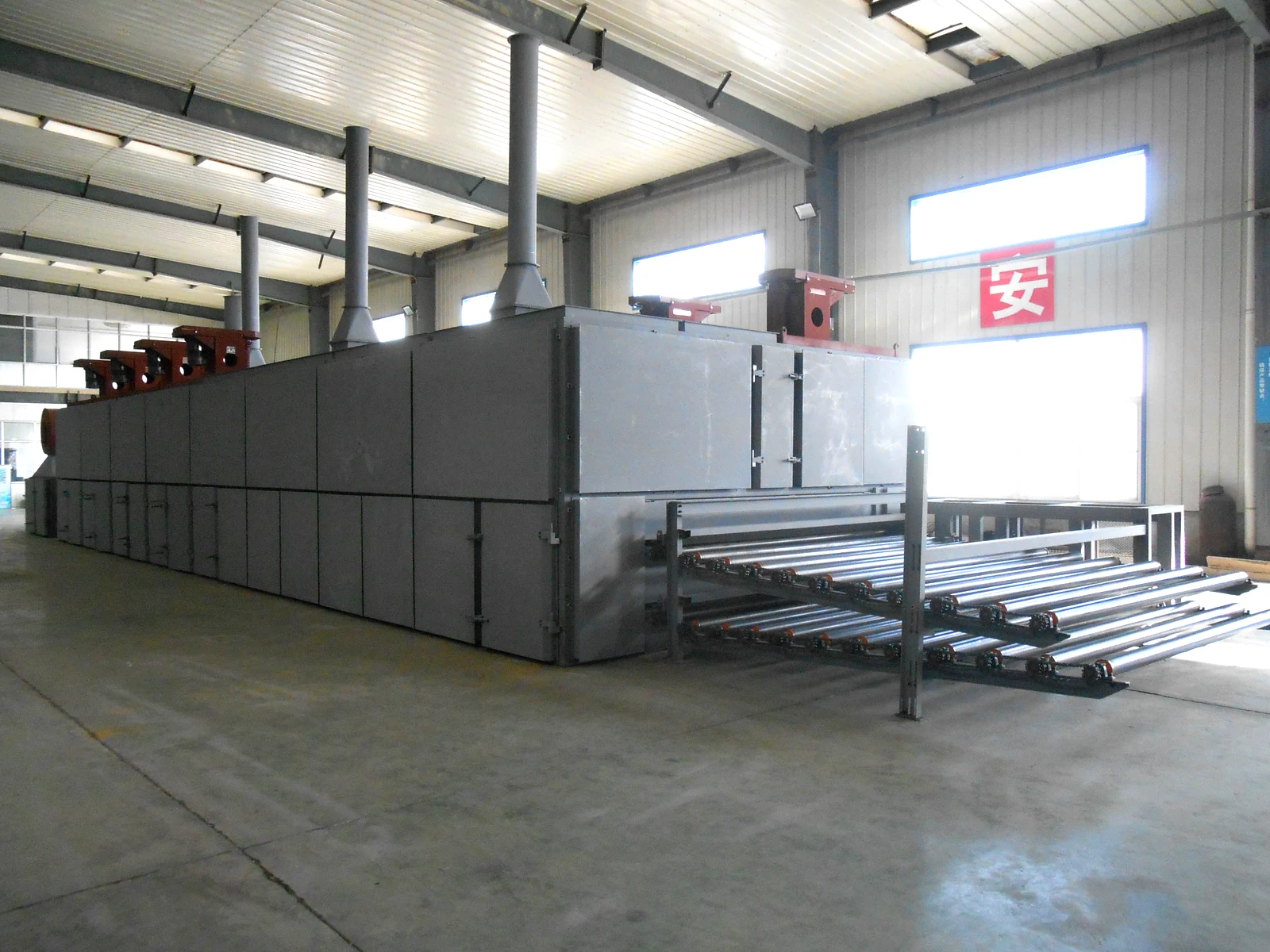

The roller type veneer dryer is the standard solution for drying 1-3mm core veneer at high throughput. Veneer sheets travel between heated roller decks while hot air jet boxes dry both surfaces evenly, so boards come out flat and crack-free. Choose 2, 3 or 4 decks and 5-15 heating sections to match your capacity: a 4-deck configuration reaches about 4 m3/h drying output at 0-15 m/min line speed. Steam or thermal oil heating, large-area radiators and a unique jet box design keep moisture even across the sheet while cutting energy use by up to 25%. Optional automatic feeder, moisture detection and sorting integrate the dryer into a fully automatic line.
Engineered Features & Highlights

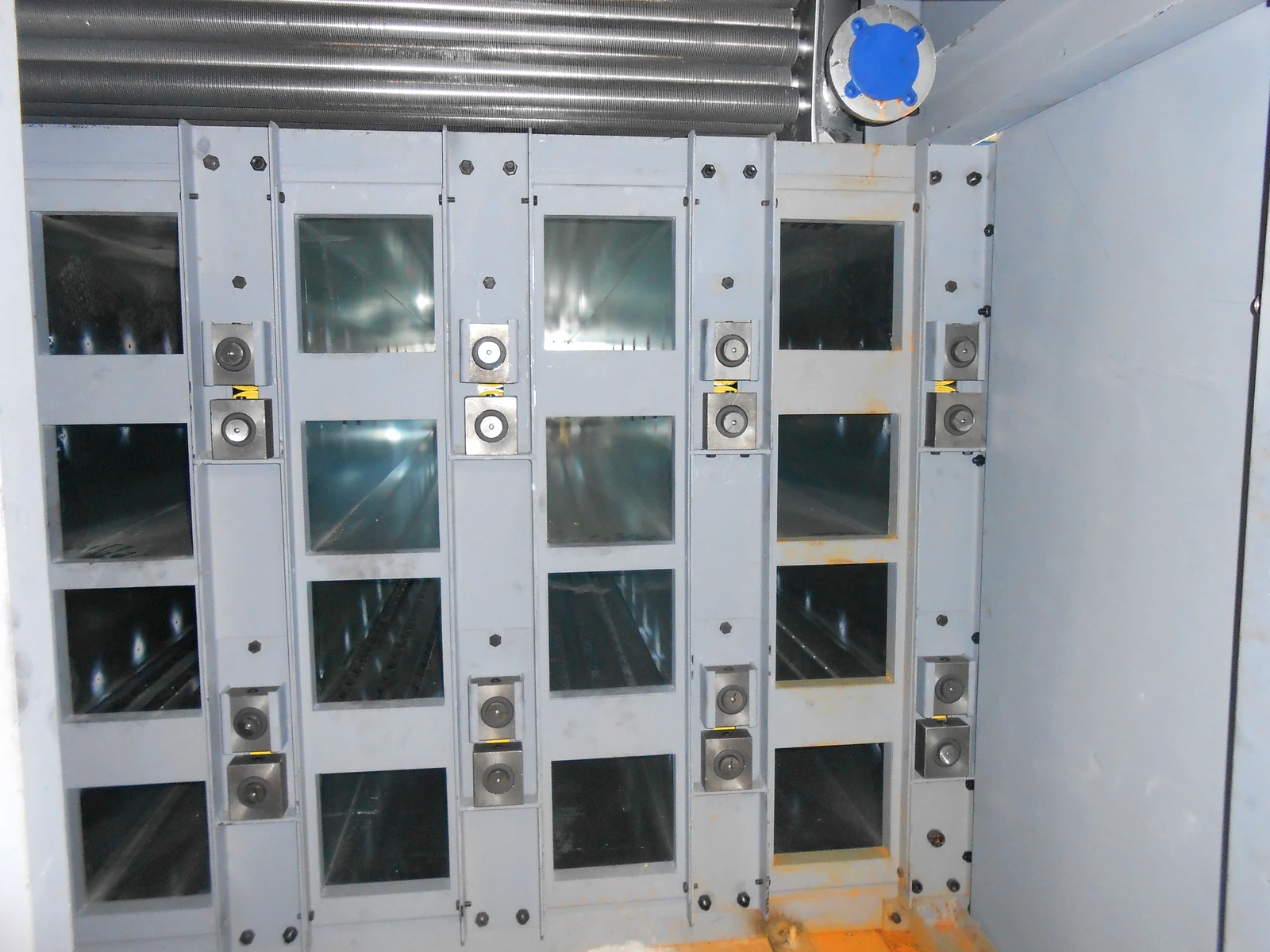

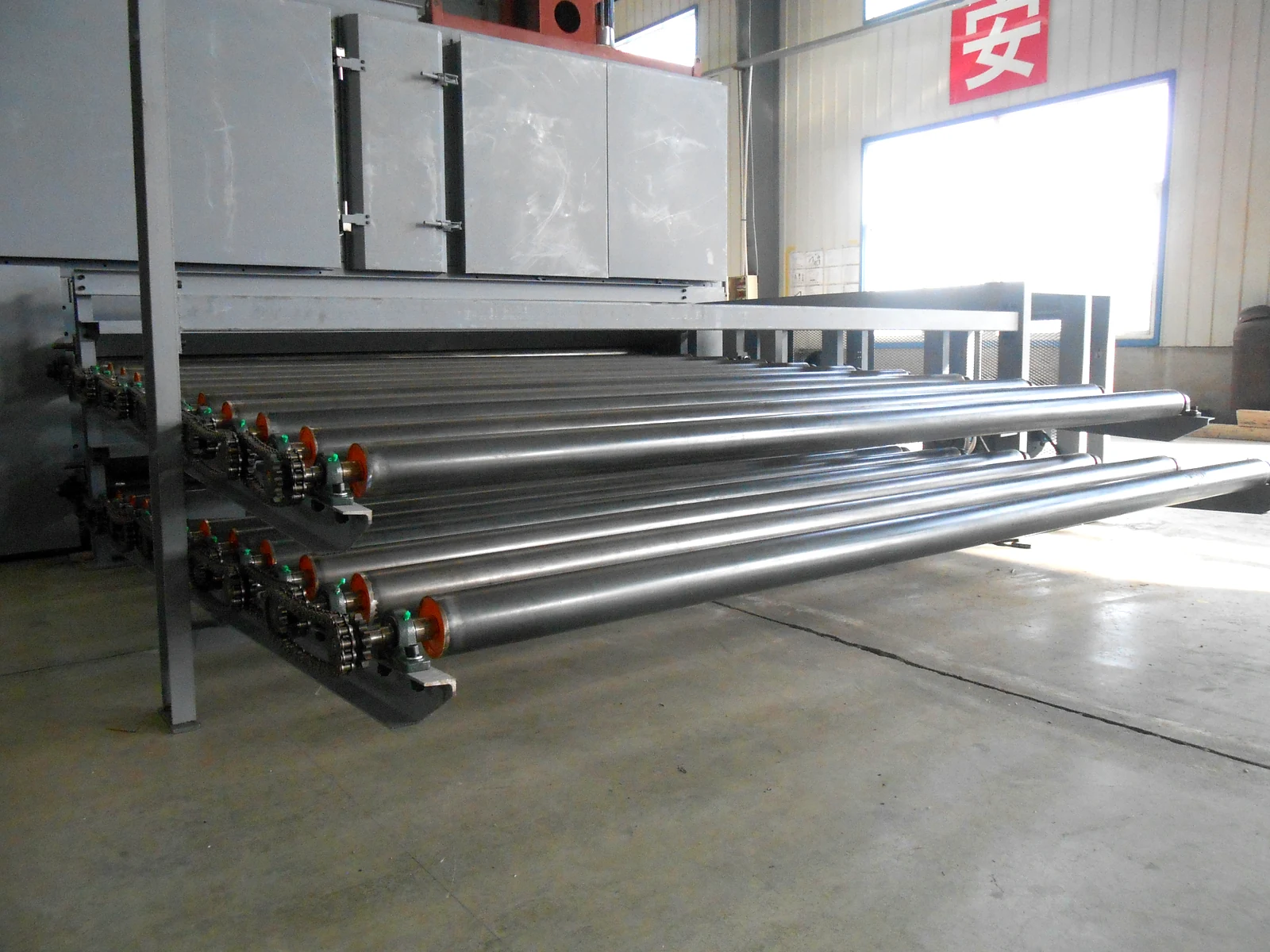

- Heated roller decks with dual-surface jet box hot air drying
- Final veneer moisture content strictly controlled at 8-12%
- Up to 25% energy savings through optimized thermal recovery
- Siemens PLC touchscreen control with customized speed & temperature recipes
- Heavy duty steel construction engineered for continuous 24/7 industrial shifts
Why Leading Global Producers Choose Hanvy
Intelligent CNC Servo Infeed & Precision Thickness
Precision ground ball screws coupled with high-torque servo drives ensure sub-millimeter thickness tolerance (±0.02 mm) across wide veneer ribbons.
Stress-Relieved Heavy Structural Steel Frame
High-tensile structural steel chassis with thermal stress-relief treatment, precision CNC gantry machined for zero deflection under decades of heavy hydraulic load.
Siemens PLC Automation & Digital Recipe Storage
Intuitive Siemens touchscreen HMI with instant digital recipe recall for multiple log species (eucalyptus, birch, pine, poplar, rubberwood).
Maximum Raw Material Recovery (+6% - 10%)
Optimized hydraulic constant knife pitch shrinks residual core diameter down to 28-32mm, maximizing wood recovery by over 6% - 10%.
Tier-1 German & Japanese Core Components
Powered by Bosch Rexroth hydraulic valves, Japanese NSK heavy-duty bearings, and Schneider low-voltage components for maximum uptime.
Strict 72-Hour Factory Acceptance Testing (FAT)
Every unit undergoes rigorous 72-hour continuous mechanical, hydraulic, and electrical test runs in our Weihai plant before overseas container shipment.
Technical Specifications & Parameters
Seamless Turnkey Process Integration
Plant Layout CAD Engineering
Custom foundation and process layout tailored to your factory footprint.
Overseas Site Commissioning
Senior engineers dispatched to your site for complete erection and test run.
Operator Hands-On Coaching
Comprehensive hands-on training for local operators and maintenance staff.
48-Hour Spare Parts Dispatch
Continuous lifetime cloud diagnostics and 48-hour emergency parts dispatch.
Frequently Asked Questions
Q:What wood species are suitable for this machine?
Hanvy machinery is engineered for both hardwoods and softwoods, including Eucalyptus, Birch, Radiata Pine, Poplar, Rubberwood, and tropical timber. The Siemens control system includes pre-configured recipes for various wood densities.
Q:What is the delivery lead time and export packaging standard?
Standard machines ship within 30-45 days; complete turnkey production lines require 60-90 days. All machined surfaces are treated with marine-grade anti-rust coating, plastic film wrapped, and steel-wire braced in standard 40ft HQ shipping containers.
Q:Do you provide on-site overseas installation and commissioning?
Yes. Hanvy has dedicated overseas engineering teams available to travel worldwide to your job site for foundation verification, machine erection, electrical cabling, and live trial peeling/pressing until full target capacity is achieved.
Q:What is the warranty policy and spare parts availability?
We provide a 12-month full machine warranty. Critical wear parts are stocked in our central warehouse and can be dispatched worldwide via DHL/FedEx within 24-48 hours. Lifetime 24/7 remote video and PLC diagnostic support is included.
Request Proposal for Roller Type Veneer Dryer
Share your target daily capacity, raw log species, and plant dimensions. Our chief engineers will provide tailored layout designs and exact quotations within 24 hours.
