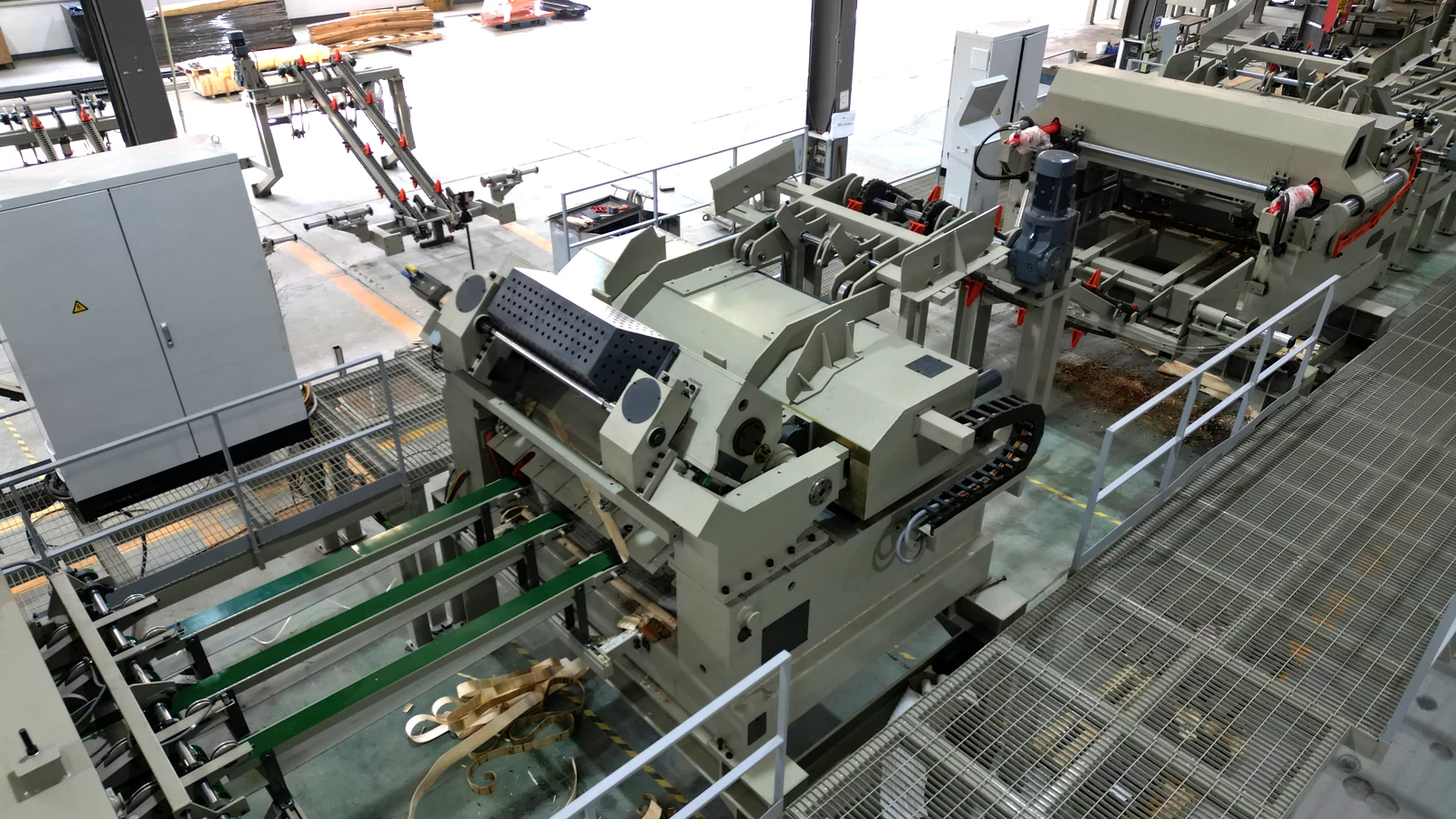

CNC Spindleless Veneer Peeling Machine Combined Rotary Clipper 4ft/8ft
High-speed CNC spindleless veneer peeling lathe for processing small and medium diameter logs down to 40mm core leftover. Equipped with servo dual-roller drive, automatic knife gap adjustment and high-speed CNC rotary clipper.
Engineered Features & Highlights
- Servo driven twin-roller design ensures uniform peeling thickness
- High core recovery down to 40mm leftover diameter
- Siemens / Delta CNC system with touch screen interface

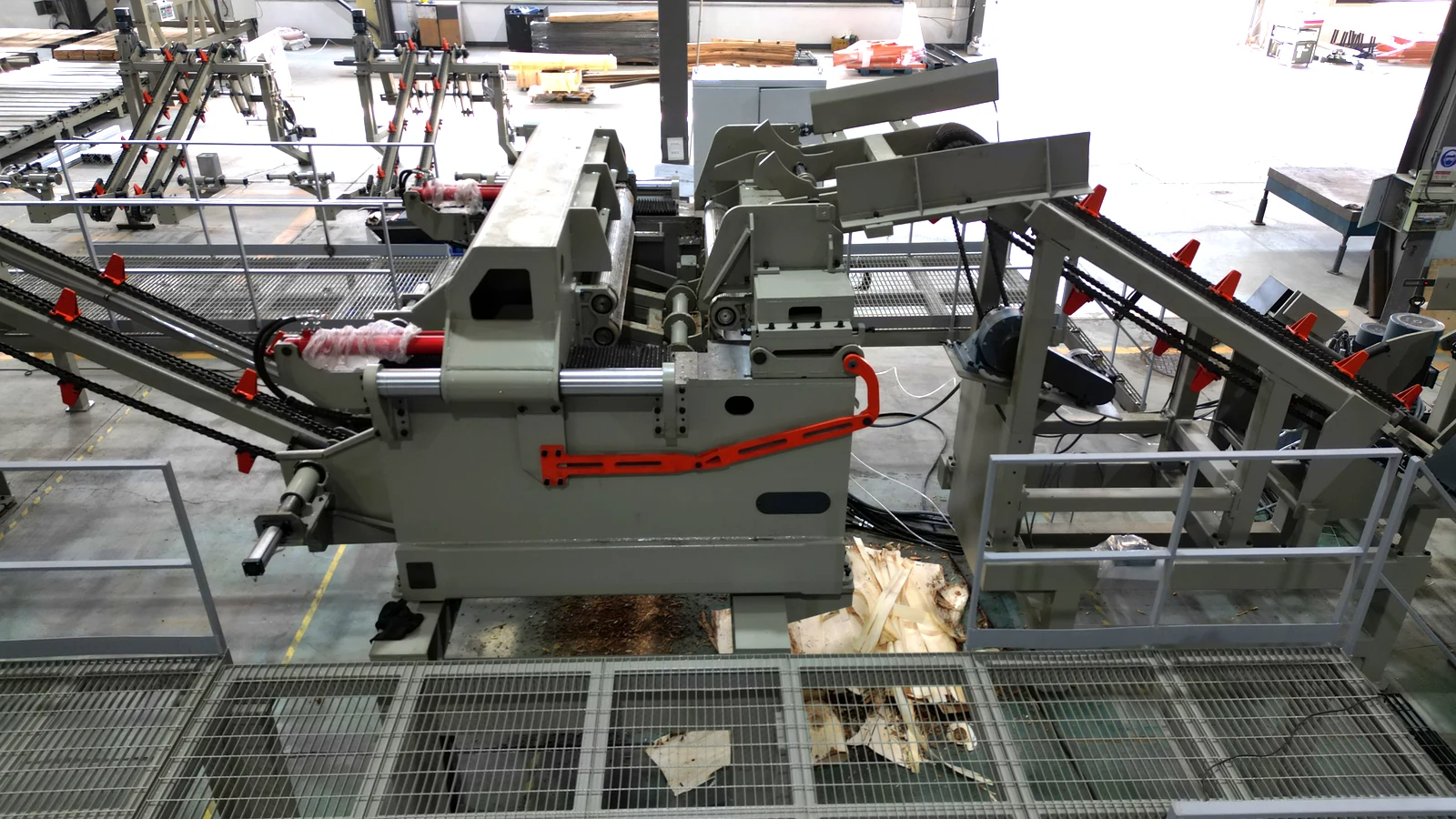

- Integrated heavy duty rotary clipper
Why Leading Global Producers Choose Hanvy
Intelligent CNC Servo Infeed & Precision Thickness
Precision ground ball screws coupled with high-torque servo drives ensure sub-millimeter thickness tolerance (±0.02 mm) across wide veneer ribbons.
Stress-Relieved Heavy Structural Steel Frame
High-tensile structural steel chassis with thermal stress-relief treatment, precision CNC gantry machined for zero deflection under decades of heavy hydraulic load.
Siemens PLC Automation & Digital Recipe Storage
Intuitive Siemens touchscreen HMI with instant digital recipe recall for multiple log species (eucalyptus, birch, pine, poplar, rubberwood).
Maximum Raw Material Recovery (+6% - 10%)
Optimized hydraulic constant knife pitch shrinks residual core diameter down to 28-32mm, maximizing wood recovery by over 6% - 10%.
Tier-1 German & Japanese Core Components
Powered by Bosch Rexroth hydraulic valves, Japanese NSK heavy-duty bearings, and Schneider low-voltage components for maximum uptime.
Strict 72-Hour Factory Acceptance Testing (FAT)
Every unit undergoes rigorous 72-hour continuous mechanical, hydraulic, and electrical test runs in our Weihai plant before overseas container shipment.
Technical Specifications & Parameters
Seamless Turnkey Process Integration
Plant Layout CAD Engineering
Custom foundation and process layout tailored to your factory footprint.
Overseas Site Commissioning
Senior engineers dispatched to your site for complete erection and test run.
Operator Hands-On Coaching
Comprehensive hands-on training for local operators and maintenance staff.
48-Hour Spare Parts Dispatch
Continuous lifetime cloud diagnostics and 48-hour emergency parts dispatch.
Frequently Asked Questions
Q:What wood species are suitable for this machine?
Hanvy machinery is engineered for both hardwoods and softwoods, including Eucalyptus, Birch, Radiata Pine, Poplar, Rubberwood, and tropical timber. The Siemens control system includes pre-configured recipes for various wood densities.
Q:What is the delivery lead time and export packaging standard?
Standard machines ship within 30-45 days; complete turnkey production lines require 60-90 days. All machined surfaces are treated with marine-grade anti-rust coating, plastic film wrapped, and steel-wire braced in standard 40ft HQ shipping containers.
Q:Do you provide on-site overseas installation and commissioning?
Yes. Hanvy has dedicated overseas engineering teams available to travel worldwide to your job site for foundation verification, machine erection, electrical cabling, and live trial peeling/pressing until full target capacity is achieved.
Q:What is the warranty policy and spare parts availability?
We provide a 12-month full machine warranty. Critical wear parts are stocked in our central warehouse and can be dispatched worldwide via DHL/FedEx within 24-48 hours. Lifetime 24/7 remote video and PLC diagnostic support is included.
Related Models & Recommended Equipment
Automatic Plywood Curtain Glue Coating Line & Glue Applicator
High-Precision Circular Saw Log Cross-Cut Line
BSG5213R-RP Double-Sided Calibrating & Polishing Sanding Line
Upstream & Downstream Station Integration
Hydraulic Log Debarker & Rounder
Strips coarse bark and grit to form a true cylindrical log, protecting peeling blades and preventing veneer tears.
Fully Automatic Veneer Drying Line
High-velocity jet nozzles flash-dry rotary peeled green veneer from 80% down to 8-12% target moisture.
Related Engineering & Process Insights
Spindleless vs. Spindle Veneer Lathes: Maximizing Log Recovery Rate
Engineering comparison of CNC servo feeding vs chuck drives. How to achieve up to 82% wood recovery.
Plywood Manufacturing Process: 7 Steps from Log to Board
Complete walkthrough of log peeling, jet drying, and hot press bonding with quality loss checkpoints.
Planning a Complete Turnkey Plywood Plant?
This unit seamlessly integrates into our end-to-end automated production line. Explore custom foundation CAD layouts, energy recovery systems, and overseas engineer commissioning.
Request Proposal for CNC Spindleless Veneer Peeling Machine Combined Rotary Clipper 4ft/8ft
Share your target daily capacity, raw log species, and plant dimensions. Our chief engineers will provide tailored layout designs and exact quotations within 24 hours.
