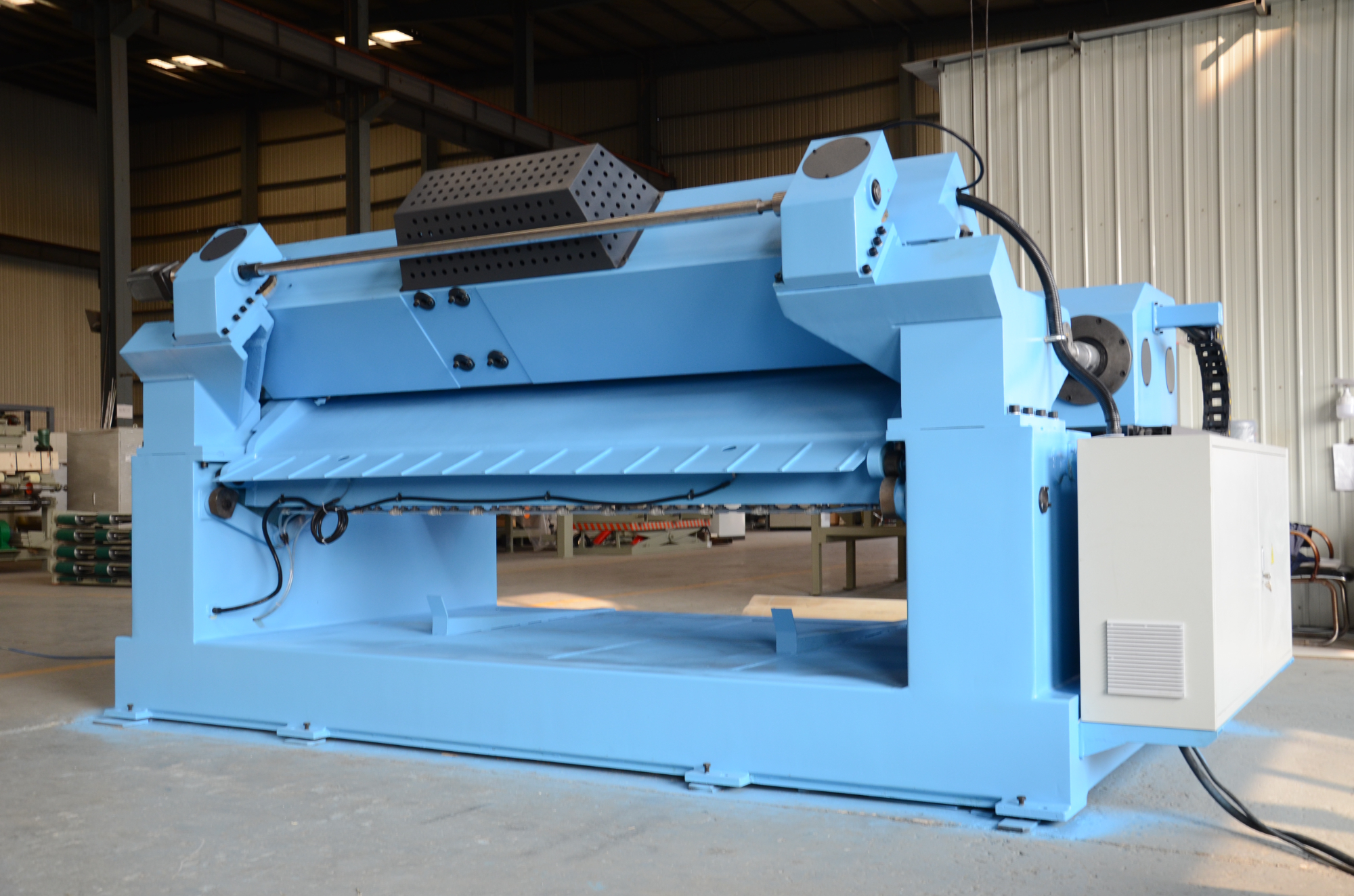

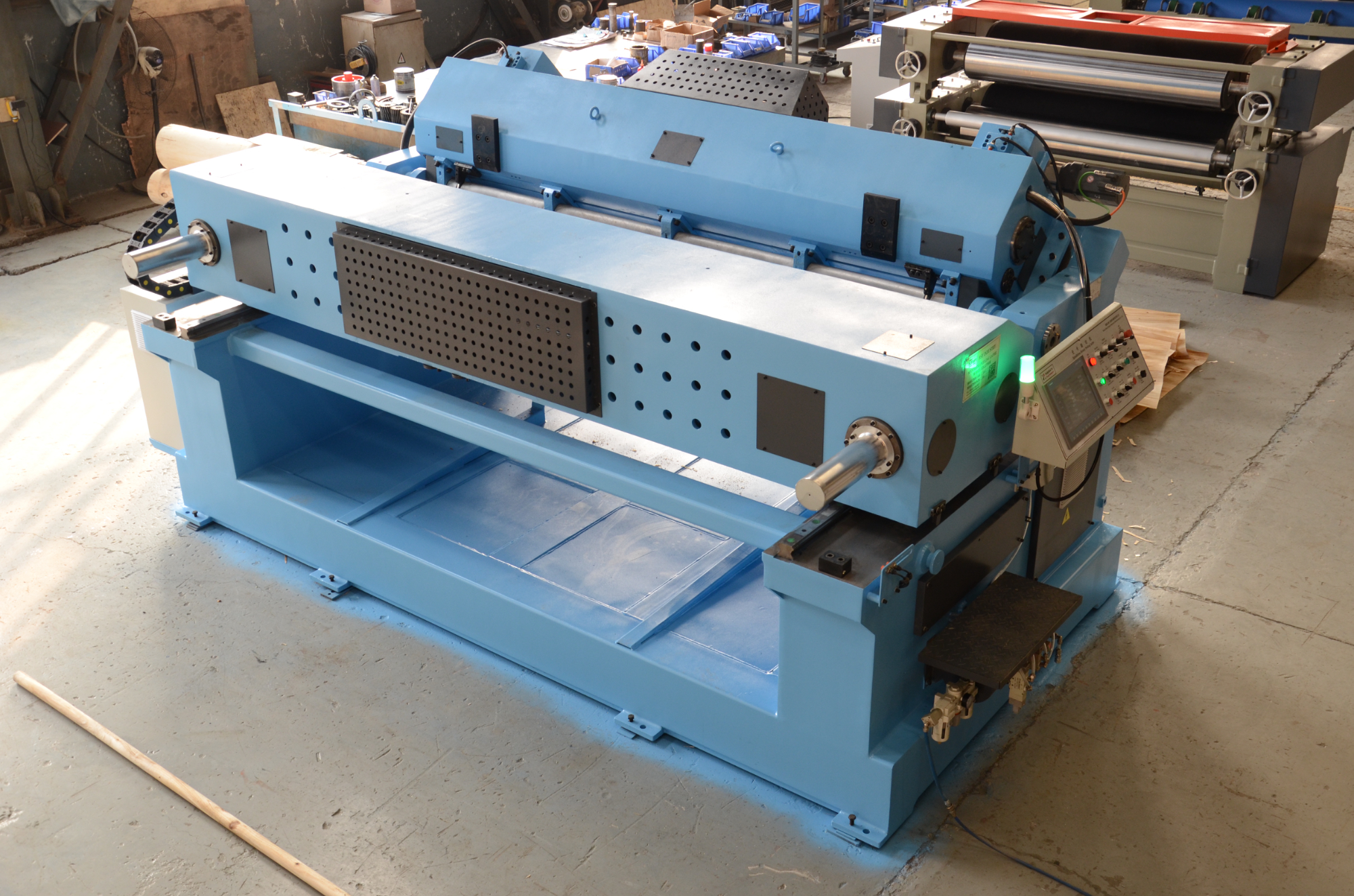

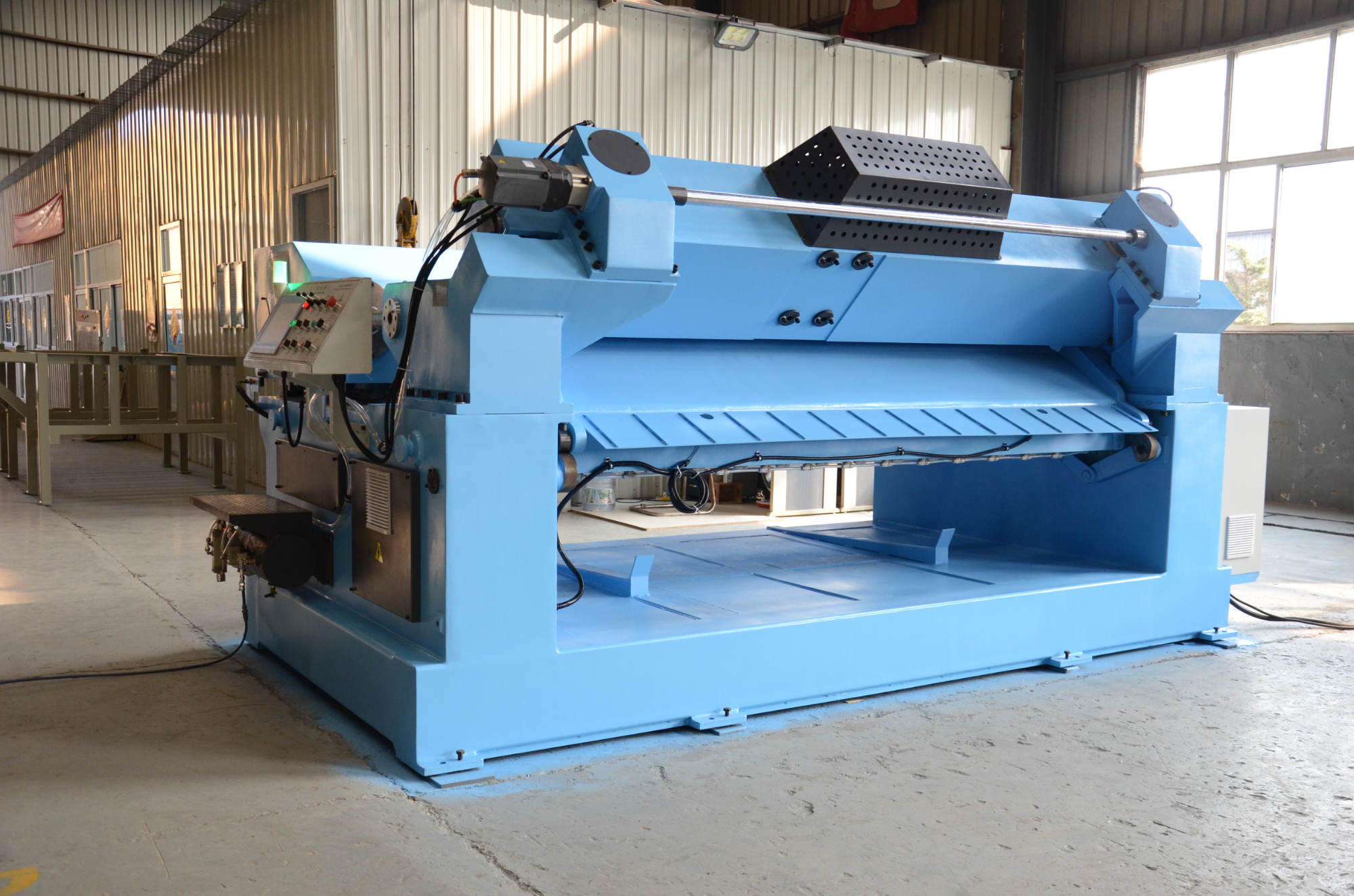

4ft 5ft 8ft 10ft CNC spindless veneer peeling machine

Description:

This machine is a motor-driven non-chuck peeing machine. The core log maintains a very high quality from the beginning of log rotaty cutting to the end. It makes full use of the small diameter of hardwood and softwood to increase the yield rate.

Features:

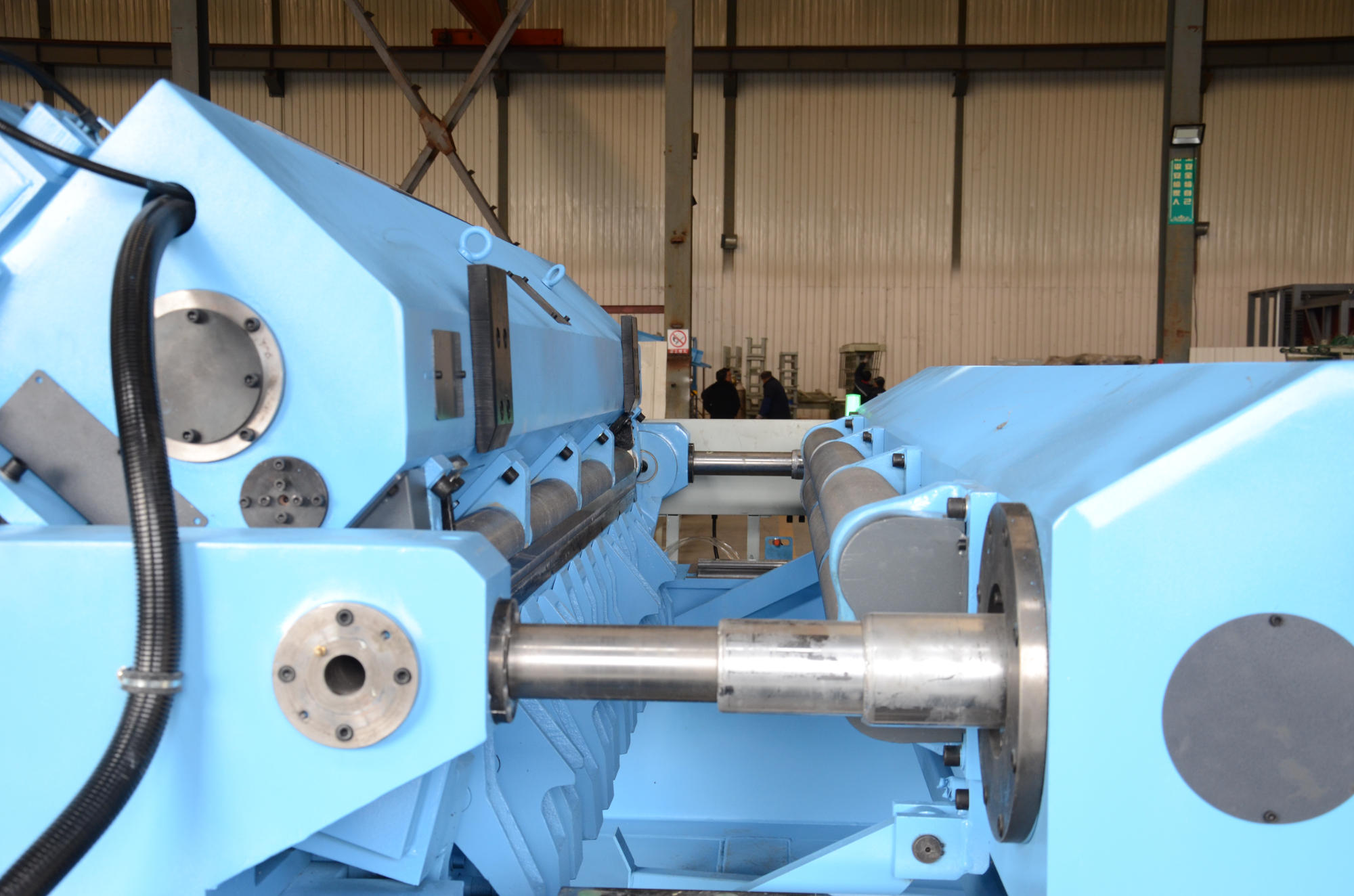

*The feed power adopts the drive center structure, and the power is placed in the middle and transmitted to the ball screw on both sides through the gear structure to rotate, which greatly prolongs the service life of the ball screw.

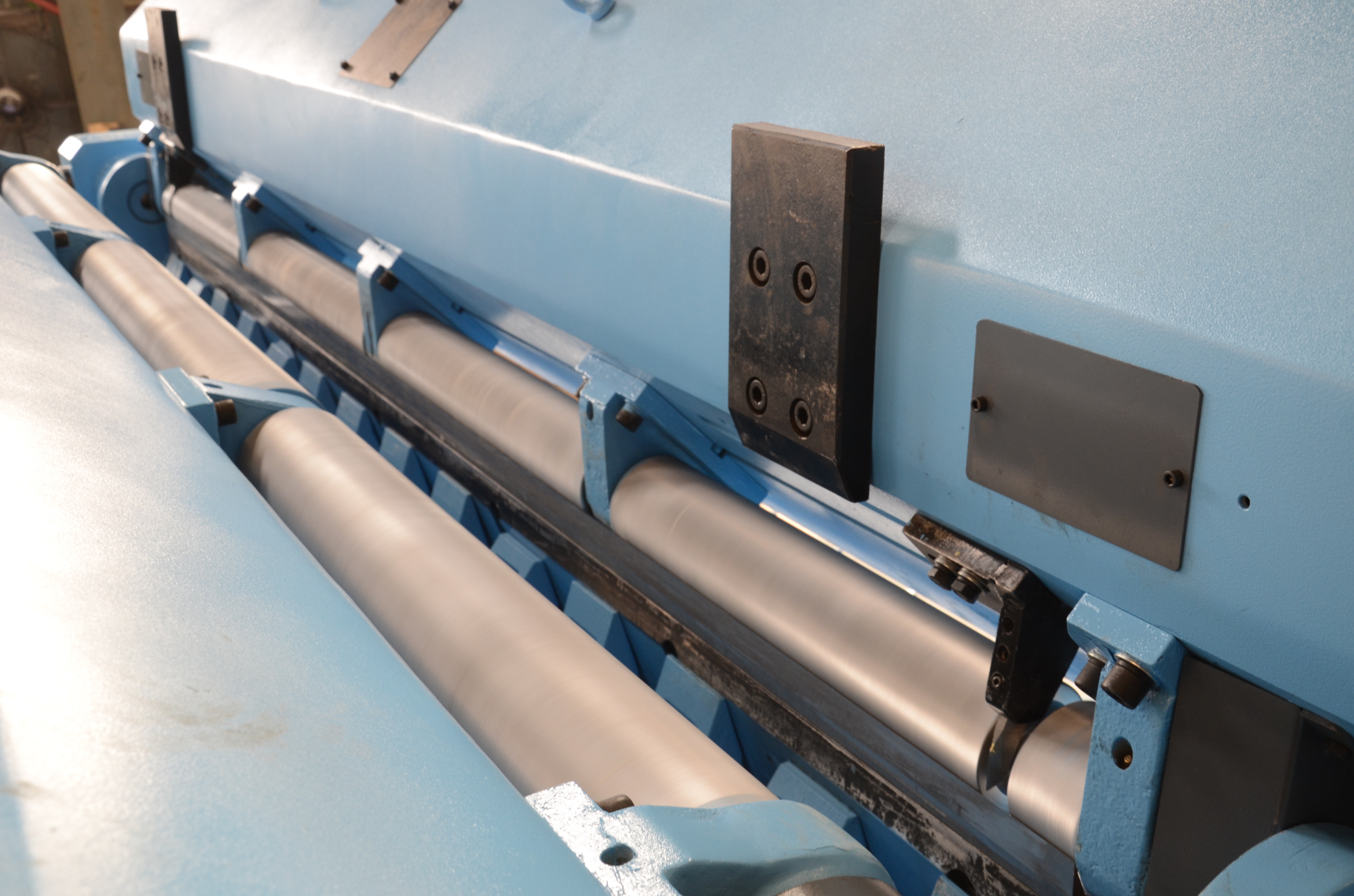

*The single and double rollers are driven by helical gears, with stable transmission, good speed rigidity and long service life.

*The machine body, single and double roller seats are reinforced, that the overall rigidity is strengthened.

*The knife angle is automatically adjusted to follow the log diameter, which can rotary peel high-quality veneer with good ability and excellent thickness tolerance.

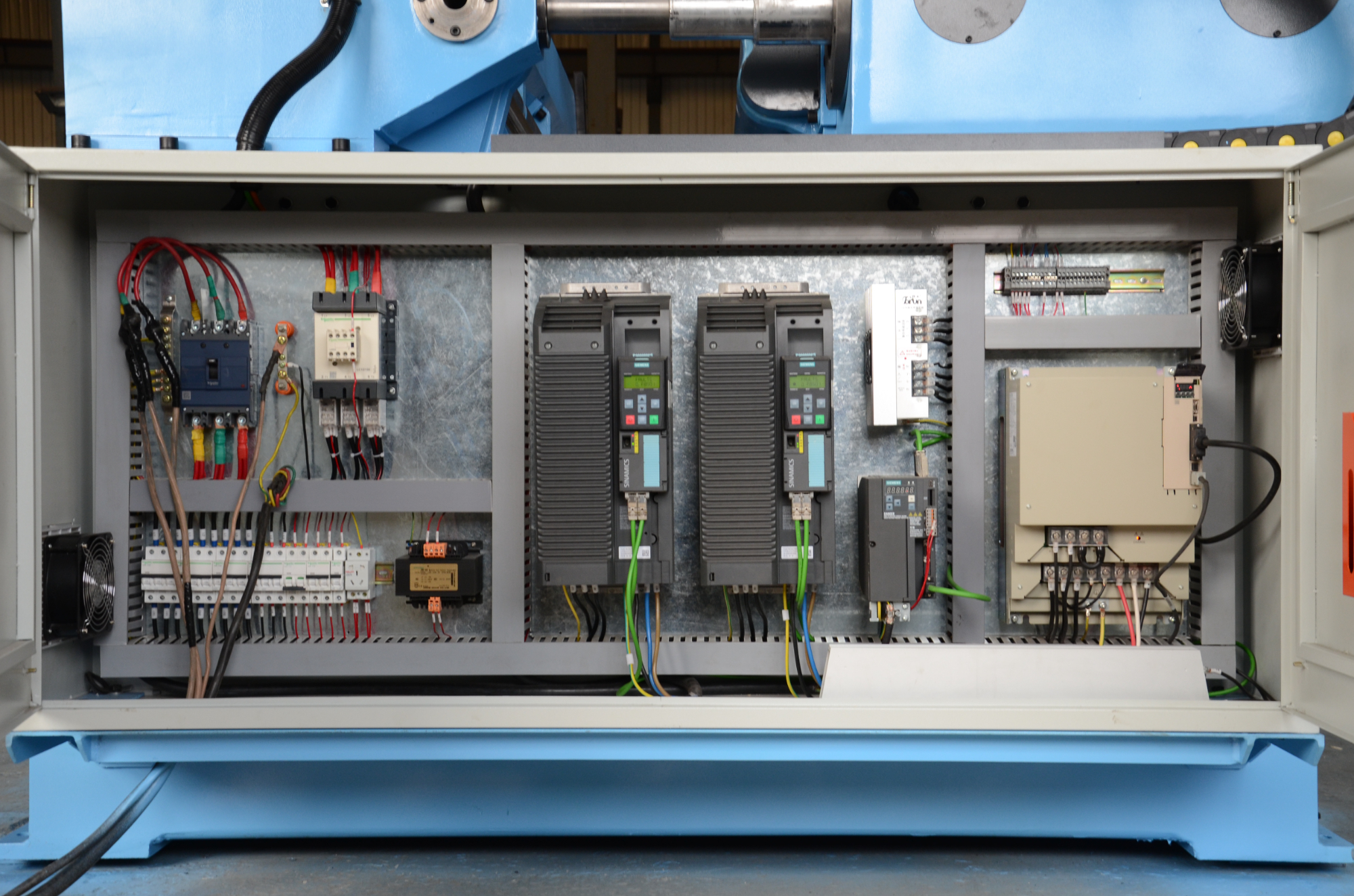

*Servo motor automatically adjusts veneer thickness,

* Hydraulic press knife (pneumatic optional)

Specifications:
